Model: R5406 | UPC: 800837000309

Capacitance box with 5 decade ranges of capacitance.

Datasheet Manual

REED R5406 Offers

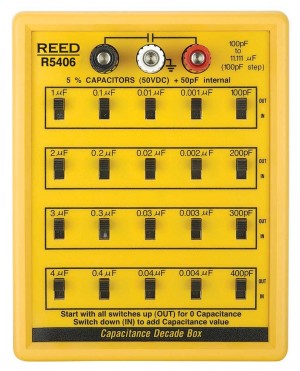

This capacitance decade box can be used to design and test circuits. The R5406 features slide switches that allow a user to easily add or subtract to quickly reach the desired capacitance range. Once tested, a capacitor size indicated by the decade box can then be put into the circuit.

What’s included with the REED R5406

  • REED R5406 Capacitance Decade Box

Features

  • 5% capacitance substitution from 100pF to 11,111µF
  • Excellent for circuit development
  • 3 binding posts permit isolated substitutions
  • 5 decade ranges of capacitance
  • Durable construction

Ideal Applications for the REED R5406

  • Product Design
